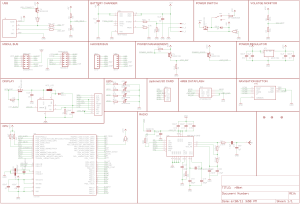

Schematic
Links: Schematic
CPU
Name: LPC1343
Description: 32-bit ARM Cortex-M3 microcontroller with 32KB flash, 8KB SRAM, USB Device
LCD
Name: Nokia 1200
Description: Nokia 1200 - 96×55 (green) monochrome LCD
Pin compatible: Nokia 1600 - 98×70 4096 color LCD
Video: Nokia displays
RF
Name: nRF24L01
Description: Single Chip 2.4GHz Transceiver with an embedded baseband protocol engine. ISM frequency band at 2.400 - 2.4835GHz
Battery
Description: 3.7V 600mAh rechargable LiPo battery
Dataflash
Name: AT45DB041B
Description: Serial interface flash memory, 4,325,376 bits of memory organized as 2048 pages of 264 bytes
Interfaces
m0dulbus
See m0dule for details.
Connector: 2×06 female socket (2.54mm/100mil)
| Pin | Description |
|---|---|
| +3V3_EXP | Fixed 3.3V |
| VCC | Battery voltage (4.5-3.5V) |
| GND | Ground |
| SCL, SDA | I2C bus |
| MISO, MOSI, SCK | SPI bus |
| SSx | Chip select for SPI or general purpose IO |
| BUSINT | Active LOW open-drain interrupt |
Hackerbus
Additional bus for fast and dirty hacking. Careful: Unlike with the bus system you can't combine everything! Connector: Optional (not prepopulated) 1×06 female socket (2.54mm/100mil)
| Pin | Description |
|---|---|
| +3V3_EXP | Fixed 3.3V |
| VCC | Battery voltage (4.5-3.5V) |
| GND | Ground |
| HBx | General purpose IO |
micro SD slot
optional, not populated
Links: Sparkfun
Misc
four LEDs, one 5 way switch, micro USB socket
