Intro
We want to encourage you to tinker with your r0ket. Write your own software or build a pluggable hardware m0dul. Surprise with your creative ideas!
Several people contacted us about producing r0kets for other occasions. All necessary information is on github and we're happy to help. But you should plan ahead at least 2 months!

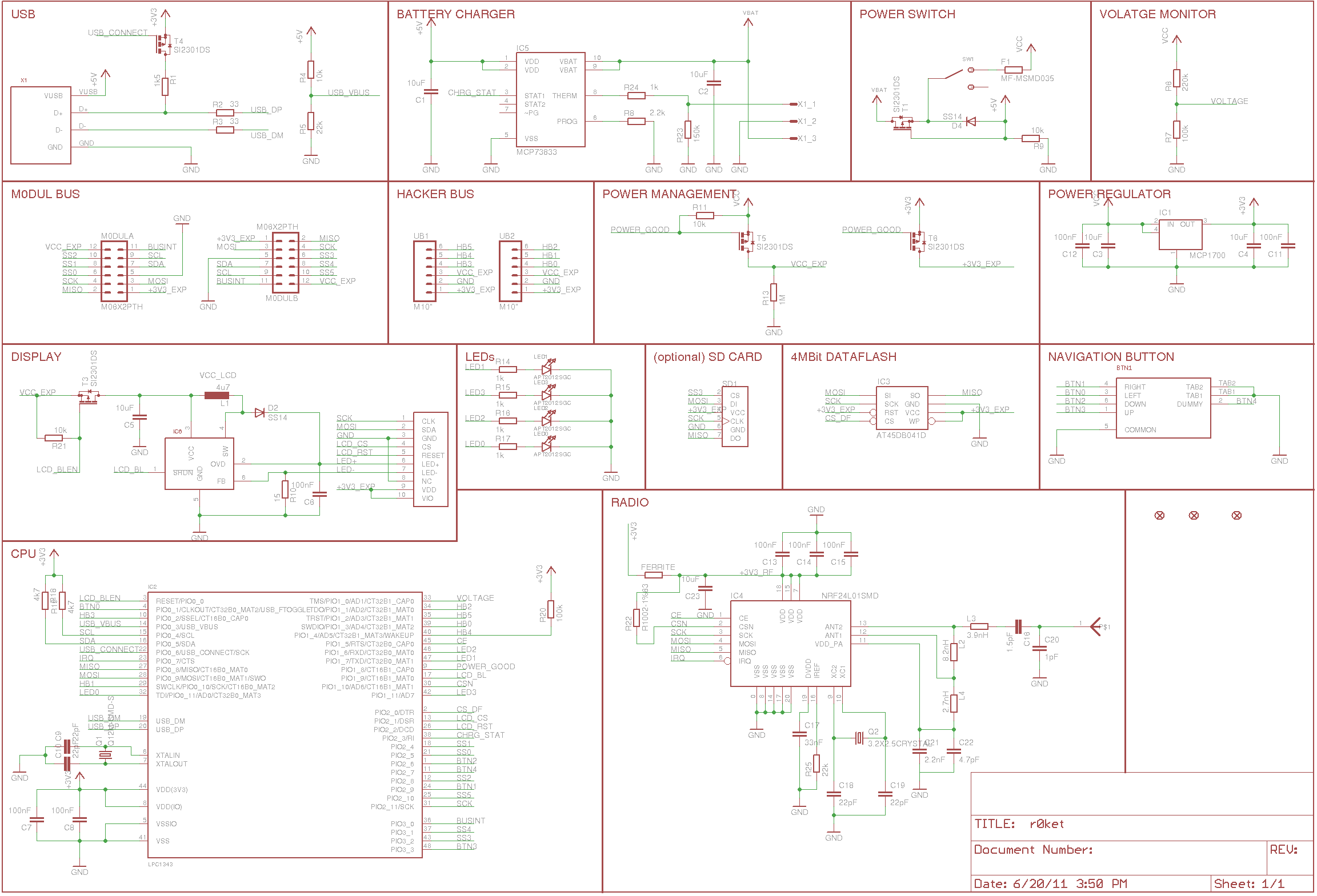

Schematic
Links: Schematic
CPU
Name: LPC1343
Description: 32-bit ARM Cortex-M3 microcontroller with 32KB flash, 8KB SRAM, USB Device
LCD
r0ket v1 and v2 come with a black and white display:
Name: Nokia 1200
Description: Nokia 1200 - 96×68 (green) monochrome LCD
Controller: Phillips PCF8814 Datasheet
Connector: Hirose DF23-10DS Datasheet
Video: Nokia displays
The Nokia 1600 - 98×70 4096 color LCD is pin compatible. Software to use this display with r0ket exists - see colordisplay for more.
RF
Name: nRF24L01+
Description: Single Chip 2.4GHz Transceiver with an embedded baseband protocol engine. ISM frequency band at 2.400 - 2.4835GHz
Antenna
its 50 ohms, so you can easily extend it by e.g. a cantenna
Links: Datasheet
Battery
Description: Custom made 3.7V 600mAh rechargeable LiPo battery
Dataflash
Name: AT45DB041B
Description: Serial interface flash memory, 4,325,376 bits of memory organized as 2048 pages of 264 bytes
Interfaces
m0dulbus
See m0dul for details.
Connector: 2×06 female socket (2.54mm/100mil)
m0dulA
| Pin | Name | Description |
|---|---|---|
| 1 | 3V3_EXP | Fixed 3.3V |
| 2 | MISO | SPI: Master in, Slave out |
| 3 | MOSI | SPI: Master out, Slave in |
| 4 | SCK | SPI: Clock |
| 5 | GND | Ground |
| 6 | SS0 | Chip select for SPI or general purpose IO RB_SPI_SS0 = PIO2_5 |
| 7 | SDA | I2C: Data |
| 8 | SS1 | CS for SPI or general purpose IO RB_SPI_SS1 = PIO2_4 |
| 9 | SCL | I2C: Clock |
| 10 | SS2 | CS for SPI or general purpose IO RB_SPI_SS0 = PIO2_8 |
| 11 | BUSINT | Active LOW open-drain interrupt |
| 12 | VCC_EXP | Battery voltage (4.5-3.5V) |
m0dulB
| Pin | Name | Description |
|---|---|---|
| 1 | 3V3_EXP | Fixed 3.3V |
| 2 | MISO | SPI: Master in, Slave out |
| 3 | MOSI | SPI: Master out, Slave in |
| 4 | SCK | SPI: Clock |
| 5 | GND | Ground |
| 6 | SS3 | Chip select for SPI or general purpose IO RB_SPI_SS3 = PIO3_2 |
| 7 | SDA | I2C: Data |
| 8 | SS4 | CS for SPI or general purpose IO RB_SPI_SS4 = PIO3_1 |
| 9 | SCL | I2C: Clock |
| 10 | SS5 | CS for SPI or general purpose IO RB_SPI_SS5 = PIO2_10 |
| 11 | BUSINT | Active LOW open-drain interrupt |
| 12 | VCC_EXP | Battery voltage (4.5-3.5V) |

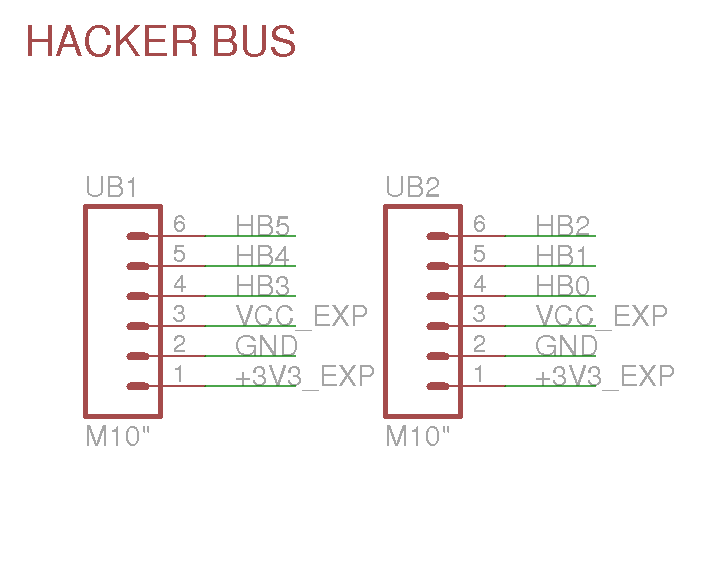

Hackerbus
The Hackerbus is an additional bus for fast and dirty hacking. But be careful, unlike to the m0dulbus you can't combine/stack extensions there!
Connector: Optional (not prepopulated) 1×06 female socket (2.54mm/100mil)
Hackbus HB1
| Pin | Name | Description |
|---|---|---|
| 1 | +3V3_EXP | Fixed 3.3V |
| 2 | GND | Ground |
| 3 | VCC_EXP | Battery Voltage |
| 4 | HB3 | PIO0_2/SSEL/CT16B0_CAP0 |
| 5 | HB4 | PIO1_4/AD5/CT32B1_MAT3/WAKEUP pulled up to +3V3 to enable deep power-down, not usable as ADC |
| 6 | HB5 | PIO1_2/AD3/CT32B1_MAT1/TRST |
Hackerbus HB2
| Pin | Name | Description |
|---|---|---|
| 1 | +3V3_EXP | Fixed 3.3V |
| 2 | GND | Ground |
| 3 | VCC_EXP | Battery Voltage |
| 4 | HB0 | PIO1_3/AD4/CT32B1_MAT2/SWDIO |
| 5 | HB1 | PIO0_10/SCK/CT16B0_MAT2/SWCLK |
| 6 | HB2 | PIO1_1/AD2/CT32B1_MAT0/TDO |
micro SD slot
optional, not populated
from: Sparkfun(item nr. PRT-00127) or csd-electronics (item. nr. 020-TFH1, datasheet)
LEDs
| LED | Port | Location | Color |
|---|---|---|---|
| RB_LED0 | PIO0_11 | bottom left | green |
| RB_LED1 | PIO1_7 | top left | green |
| RB_LED2 | PIO1_6 | bottom right | green |
| RB_LED3 | PIO1_11 | top right | red |
Misc
Further reading
- Documentation on m0dul development
- Show your Hardware modifications
